AE275-800

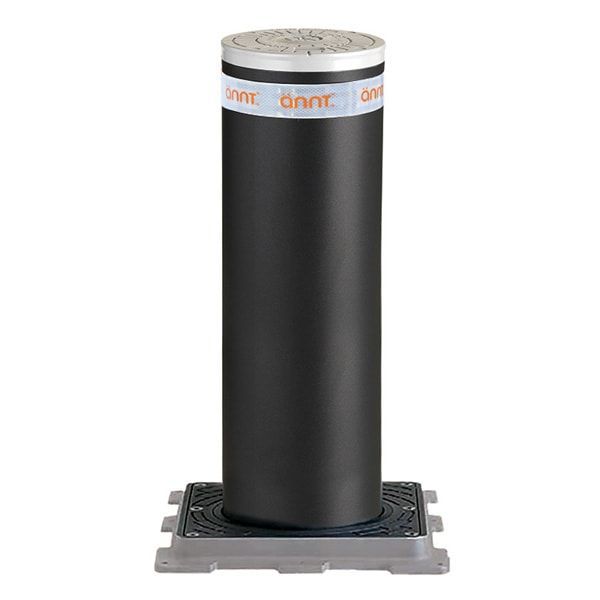

Automatic bollards AE275-600/ 800 with integrated electromechanical operator
275/EM 600A are automatic electromechanical bollards designed by the ännTTM staff, who have worked in the the retractable technologies industry since more than 20 years. The 275/EM 600A bollard is recommended for use in pedestrian areas, private parkings, business parkings, private driveways, business driveways, commercial driveways. The 275/EM 600A is available with a large number of optional accessories that allow you to customize your system according to your security needs.
Bollard Use:
Control
Product Description
| Automatic bollards AE275-600/ 800 with integrated electromechanical operator | AE275/K4-90 Article no. |
AE275/K4-90 Article no. |
|
| Automatic bollard AE275-600 / 800 | Steel painted |
PY101061 | PY101081 |
| Stainless steel painted | PY107061 | PY107081 | |
| Stainless steel brushed | PY113061 | PY113081 | |
| Automatic bollard AE275-600/ 800+ Lighting strips with 25 LEDs | Steel painted | PY103061 | PY103081 |
| Stainless steel painted | PY109061 | PY109081 | |
| PY115061 | PY115081 | ||
| Foundation box for automatic bollards | Article no. | ||
| Steel foundation box with aluminium zinc coating - counterframe and ground anchors |
AE275-600 AE275-800 |
PY151001 PY151002 |
|
| Stainless steel foundation box, water-tight version - counterframe and ground anchors |
AE275-600 AE275-800 |
PY151024 PY151026 |
|
| Stainless steel foundation box, water-light version - immersion pump, counterframe and ground anchors |
AE275-600 AE275-800 |
PY151025 PY151027 |
|
| Counterframe and ground anchors | AA105031 | ||
| Metal cover cap for foundation box (with screws) | AA900981 | ||
| Pavement frame for laying paving stones | Stainless steel standard coating, anti-slip | AA107701 | |
| Stainless steel brushed | AA107691 | ||
| Bollard inserted in foundation box (not fully fitted / to reduce transport costs) | AA101371 | ||
| Controls for automatic bollards | Article no. | ||
| Control for systems with max. 3 bollards EM- 2 batteries 12 V 7 Ah | AA106491 | ||
| // NEW Control for systems with max. 6 bollards EM - 2 batteries 12 V 12 Ah | AA108791 | ||
| // NEW Control for systems with max. 9 bollards EM - 2 batteries 12 V 12 Ah | AA108801 | ||
| Optional extras for automatic bollards | Article no. | ||
| Surcharge for painting the cylinder in RAL to choose | Cylinder 275-600 Cylinder 275-800 |
AA900601 AA900631 |
|
| Acoustic warning signal (for bollards only in combination with LED lighting strips) | |||
| Protection against corrosion - marine treatment - for bollard frame (recommended for saline ambient conditions) | AE275-600 AE275-800 |
AA105351 AA105651 |
|
| Protection against corrosion - marine treatment - for steel cylinders (recommended for saline ambient conditions | AE275-600 AE275-800 |
AA103991 AA104011 |
|
| Protection against corrosion - marine treatment - for the upper counterframe (recommended for saline ambient conditions) | AA106521 | ||
| Heating element incl. transformer and thermostat 80 W, connecting lead 10 m | AA100041 | ||
| Extended connecting cable from bollard to control (max. 30 m total) supplied in 5 m increments Per m | AA105141 | ||
| Bottom magnetic contact with support brackets - for traffic light control and status feedback | AA105171 | ||
| Acoustic alarm with glass button for Italian approved sirens | AA100131 | ||
| Stainless steel control box with ground fitting - foundation anchors Dimensions (Wx D x H) 330 x 280 x 967 mm, protection category IP40 |
BB100071 | ||
| Fibreglass control box with ground fitting - foundation anchors Dimensions (Wx D x H) 580 x 330 x 940 mm, protection category IP55 |
BB100891 | ||
| Cylinder cover (head) and reflecting strip (no logo) | AA108811 | ||
| Surcharge for stainless steel cylinder cover (AISI 304) | AA108811 | ||
| Surface customisation of the cylinder cover, e.g. with a city crest or a logo | |||
| Kit to modify the bollard for inclined road (only for AE275-600 |
AA107591 | ||
| Project inclination required (if not available) | AA107601 |
Product Description

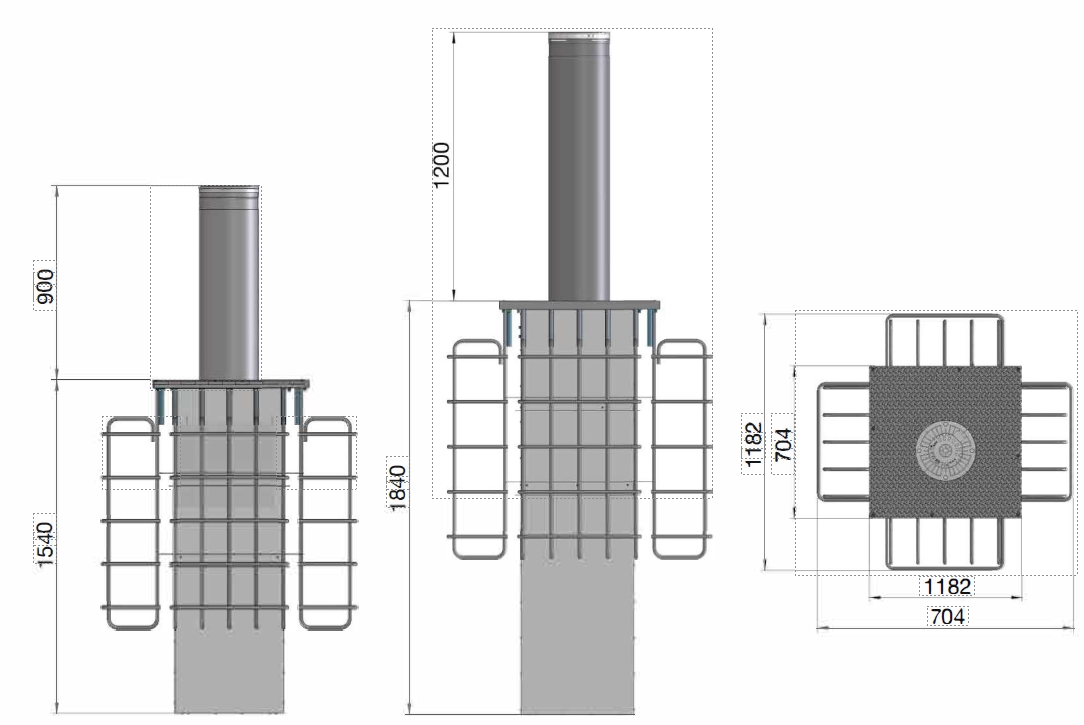

| Automatic Bollards (AE) | AE275/K4-900 | AE275/M30-1200 | |
| Movable cylinder | Height Diameter Material thickness Material |
900 mm 273 mm 10 mm Steel S355JR |
1200 mm 273 mm 16 mm |
| Surface treatment |
Stainless steel (AISI 304) /(AISI 316) Steel version: anti-corrosion treatment -standard painting* Stainless steel version: standard painting* or brushed |
||
| Reflecting strips (height 55 mm) |
Yes | ||
| Lifting speed Lowering speed |
22 cm/s 22 cm/s |
22 cm/s 22 cm/s |
|
| Manual emergency lowering |
Yes |
||
| Connecting cable to control unit |
Standard 10 m -(max. 50 m) | ||
| Control unit voltage |
230 / 400VAC (+/-10 %) 50 /60 Hz | ||
| Protection category |
IP 67 | ||
| Cycles per day | 2,000 |
||
| Overall cycles (service life) | Approx. 3,000,000 | ||
| Impact energy without destruction - impact resistance | 250,000 J | 700,000 J | |
| Impact energy with destruction - breakout resistance | 750,000 J | 1,200,000 J | |
| Load rating acc. to EN 124 | D400 Regulation | ||
| Temperature range | From -40°C to +70°C (for low temperatures, see heating element) |
||
| Certified acc. to | PAS68, IWA14-1, ASTM M30 (K4) | PAS68, IWA14-1, ASTM M30 (K4) |
|
| Confonning with | ASTM M40 (K8) |
For orders with no surcharge in RAL to choose, the standard colour is Anthracite grey.
75+
Available Products
Zero
Vehicles Stolen
1-2 Day
Quick Installations
100%
Canadian Owned
Learn more!
Commonly Asked Questions!
Residential bollards come in various types to meet specific security needs and aesthetic preferences, including automatic, removable, and fixed bollards. Knowing the unique features and benefits of each type helps homeowners choose the best option for their property.
Prevent vehicle theft.
Enhance property security.
Protection against weather.
What are the materials used in bollards?
Bollards are typically made from materials like steel, concrete, or stainless steel. For Calgary’s weather, stainless steel and galvanized steel are excellent choices due to their resistance to rust and corrosion. These materials can withstand extreme cold and moisture, making them ideal for year-round protection against vehicle theft.
How much do residential bollards cost?
The cost of residential bollards can vary depending on factors such as the material, design, and installation requirements. Generally, the price can range from $750 to $2000 per bollard, including installation. Retractable or removable bollards tend to be more expensive due to the added functionality.
Will bollards affect the aesthetics of my property?
Modern bollards come in various designs and finishes, allowing homeowners to choose bollards that complement their property’s aesthetics. Options like decorative covers or customizable colors can help ensure that the bollards blend in seamlessly while still providing robust security.
Are bollards effective against vehicle theft?
Yes! Bollards are highly effective in preventing vehicle theft. They act as a physical barrier that deters thieves from driving away with a vehicle and can also prevent unauthorized individuals from accessing your property. By creating a secure perimeter, bollards add an extra layer of protection, not only for vehicles but also for your home or business. Police and security experts often recommend bollards as an additional security measure to safeguard both your property and your vehicles in residential areas.
